The Vinland Map
"The Vinland Map is still a 20th-century forgery"
In 1972, Yale commissioned research microscopist Dr. Walter C. McCrone to examine ink from the Vinland Map. In 1973, Walter C. McCrone and Lucy B. McCrone declared the Vinland Map to be a fake. Subsequently, Dr. McCrone published two papers (1974 and 1976) detailing his analytical data proving the Vinland Map to be a post-1920 production rather than 1440 as proposed by some scholars and book dealers. With the McCrone Research Institute in Chicago, he published an additional paper (1988) and revisited the map in 1991 in order to identify the ink medium (result = collagen tempera) and published this and his final paper on the subject in 1999, always with the same conclusion: “The Vinland Map is still a 20th-century forgery.”

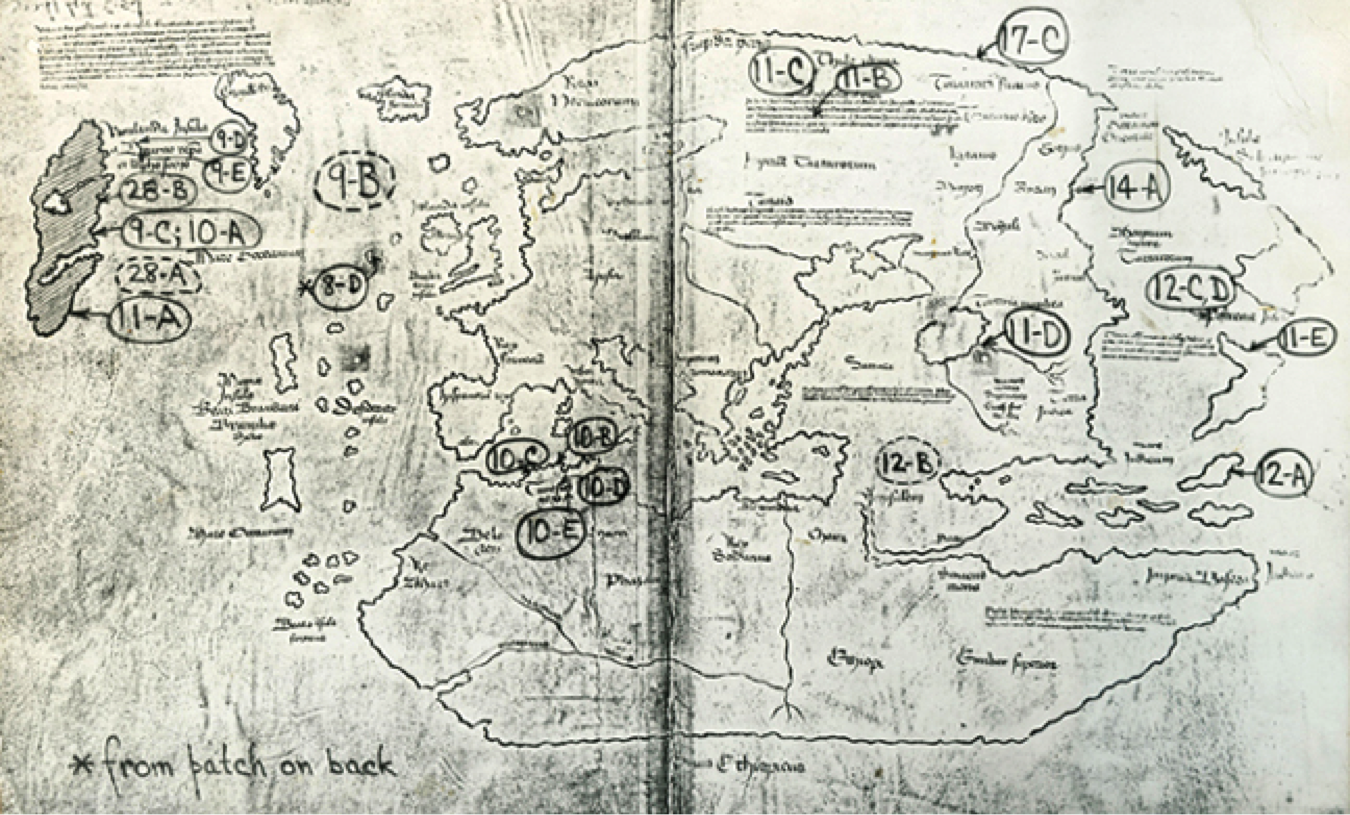

Figure 1. The Vinland Map depicting the world as it was thought to be in 1440 but showing Vinland (Northeast North America) in the upper left. Alphanumeric labels indicate the 27 McCrone micro-sample ink locations.
The Vinland Map (VM) was first revealed to the world in 1965 with the appearance of a book, The Vinland Map and the Tartar Relation, by Skelton, Marston, and Painter. The map, an unassuming pen and ink rendering, is a world map on 27.8 x 40 cm parchment folded in two leaves. It is, however, remarkable for its purported date of 1440 in depicting lands to the west of Greenland, their shape, size, and position resembling the Northeastern extensions of North America (i.e. Vinland).
The perpetrator had simulated a yellow stain along the black ink lines because black lines would develop such a stain as the ink migrated along the fibers (a micron or so every 100 years) and become yellow with age. Not having 500 years to wait, he (or she) executed the map entirely with a yellow ink line then very skillfully added a black ink line down the middle of the yellow line. paragraph.
Then, to compound the felony, they used a yellow pigment, titanium “white,” that in the 1920s, when it was first produced as a very finely divided ink pigment, was yellow from iron impurities. That pigment, TiO2, was the newly invented (1917 patent) pigment averaging 0.3 micrometers in diameter and produced by a process of dissolving ilmenite, iron titanate (FeTiO3) in concentrated sulfuric acid, hydrolyzing this to an amorphous gel and then calcining it to 0.3 micrometers anatase crystals at up to 800 degrees Celcius.
Tom Cahill et al. of University of California (Davis) in 1987 using submillimeter samples and a trace analysis instrument (PIXE, a proton probe) found more titanium (PIXE identifies only elements, not compounds), in the Vinland Map ink lines than elsewhere on the parchment. He says “too little titanium” to explain the yellow color of the yellow ink. His sample is a large fraction of a cubic millimeter and he expresses his results as ng/cm2.
McCrone measured the titanium content of nanogram flakes of the yellow ink itself, no parchment, and found 5% – 45% by weight of the inorganic content to be titanium. McCrone had no trouble detecting TiO2 as 0.3 micrometer anatase by PLM and XRD. McCrone also detected plenty of titanium in 21 different samples of the yellow ink using electron and ion microprobes.
In short, there is no possibility the VM could be medieval — yet on February 10, 1996, a symposium [to which Dr. McCrone was not invited] was held at the Yale University Press to celebrate release of the second edition of “The Vinland Map” published by Yale University Press and authored by R.A. Skelton, T.E. Marston, and G.D. Painter. Those invited were avowed believers in the authenticity of the map. Some results of that meeting were published by the New York Times. Interviewed at the Symposium, Wilcomb Washburn of the Smithsonian said, “I think the evidence is clearly on the side of authenticity.” On CBS that night, he said the inks in the “Tartar Relation” and the Speculum Historiale thought to have been bound with the VM also showed anatase. No one has found anatase in these two documents and McCrone found 200 times less titanium (in any form) in those inks than found in the VM. Cahill reported at the symposium by his trace analysis instrument that the VM ink contained only the trace amounts of titanium characteristic of all medieval maps — “none of the quantities were sufficient to be considered a purposefully added ingredient.”
Dr. McCrone's Response:
“How then did we find 200 times more titanium in the VM than in the other two texts and how were we able to obtain an X-ray diffraction (XRD) pattern characteristic of anatase and transmission electron micrographs of areas of the VM yellow ink showing 100 or more anatase particles? We did it by using ultramicroanalysis [submicrometer particles]. These particles are unique and impossible to have been prepared in 1440, 300 years before titanium was discovered and nearly 500 years before the chemical synthesis of pigment titanium dioxide was developed and, with great effort and expense, perfected to yield 0.3 micrometer anatase pigment.The situation with the VM now becomes the same as with the Turin “Shroud,” another widely known and important relic that unfortunately I and my colleagues also found in the 1970s to be a fake. Read about Dr. McCrone’s work on the Shroud of Turin.
There [on the Shroud] we found, by identifying single submicrometer particles as the only colored matter in the “Shroud” image areas, two red pigments and a yellowed watercolor paint medium. The pigments red ochre and vermilion with the collagen tempera medium was a common paint composition during the 14th century; before which, no one had ever heard of the Shroud. The Bishop of the diocese of the Church where it was first exhibited in 1356 wrote to the Pope saying he knew the artist who had painted it. We decided, based on our particle approach in 1979, that the Shroud was painted in 1355. In 1987, eight years later, carbon dating at three prestigious laboratories confirmed this by agreeing on a best date of 1325, plus or minus 65 years.
Up to now I’ve been able to maintain my equilibrium and even my sense of humor in the face of being ignored or being insulted-one postcard stated “Old man Walter C. McCrone is an incompetent senile old fart who belongs in the nuthouse. That old fraud fudges data on an unprecedented scale [signed] Citizens for Scientific Honesty.” I laughed when I was told the image was a result of the resurrection and even when Prof. Bollone typed my red ochre paint and found it to be type AB. My most recent laugh came when John Jackson and his wife suggested the 14 × 3 ft. Shroud linen was the tablecloth at the last supper.
Lately and especially after the recent Yale Symposium, I find it more difficult to see the humor in these situations. From a scientific point-of-view, these two problems were not difficult to solve, especially if one uses PLM and other ultramicro techniques and instruments on tiny particle samples rather than trace analysis techniques on millimeter samples like PIXE, Cahill’s instrument. No one other than McCrone working on these two fakes used light and electron microscopes. Instead, others looked for traces using good but inadequate and inappropriate trace analysis techniques. These are not intended for problems like VM or the Shroud.
I had hoped solving these problems using PLM then using other proper ultramicroanalytical instrumentation for confirmation would help PLM recover its lost position in analytical chemistry. PLM has been cheated out of this recovery and is rapidly sliding into oblivion. This situation is now no longer funny, and I am looking for ways to redress this wrong. It seems to me to be a matter for the attention of the American Academy of Sciences.
If a committee of scientists qualified in the physical methods of ultramicro particle analysis were appointed by the Academy, I am absolutely certain they would decide the VM and the Turin “Shroud” are masterpieces of art. If two different groups of presumably good scientists can be so wrong on the VM and the Shroud, what other important projects they work on may also be wrongly concluded. The situation, highlighted by the VM and Turin “Shroud,” indicates a very serious problem in science today. Far more serious than either the VM and Shroud or any individual scientist, I hope something can be done to convince scientists to use the proper technique and instruments to solve today’s analytical problems.” — Dr. Walter McCrone
REFERENCES (in chronological order):McCrone, W.C. and L.B. McCrone (1974), Geol. J. 140: pp. 212-214.McCrone, W.C. (1976), Anal. Chem. 48: pp. 676A-679A. Cahill, T.A., et al. (1987), Ibid. 59: pp. 829-833.McCrone, W.C. (1988), Ibid. 60: pp. 1009-1018.McCrone, W.C. (1996), “Judgement Day for the Turin Shroud” Microscope Publications: pp. 38-48.McCrone, W.C. (1999), The Microscope. 47:2: pp. 71-74.Brown, K.L., and Clark R.J.H. (2002), Anal Chem. 74: pp. 3658-3661.Cummings, M. (September 1, 2021), YaleNews
Editor's Note: In 1973, Walter and Lucy McCrone determined convincingly, by light and electron microscopy, that the Vinland Map is a 20th-century forgery. In 2002, Clark and Brown (University College London) determined with certainty, by Raman microprobe spectroscopy, that the Vinland Map is a 20th-century forgery. In 2021, Lemay, Zyats, Bezur, Hark, Londero, and Wiggins (Yale team), determined convincingly and with certainty, by macro X-ray fluorescence spectroscopy and Raman microspectroscopy, that the Vinland Map is a 20th-century forgery. Conclusion: The Vinland Map is still a 20th-century forgery.
